Bucher Pump 2 Way

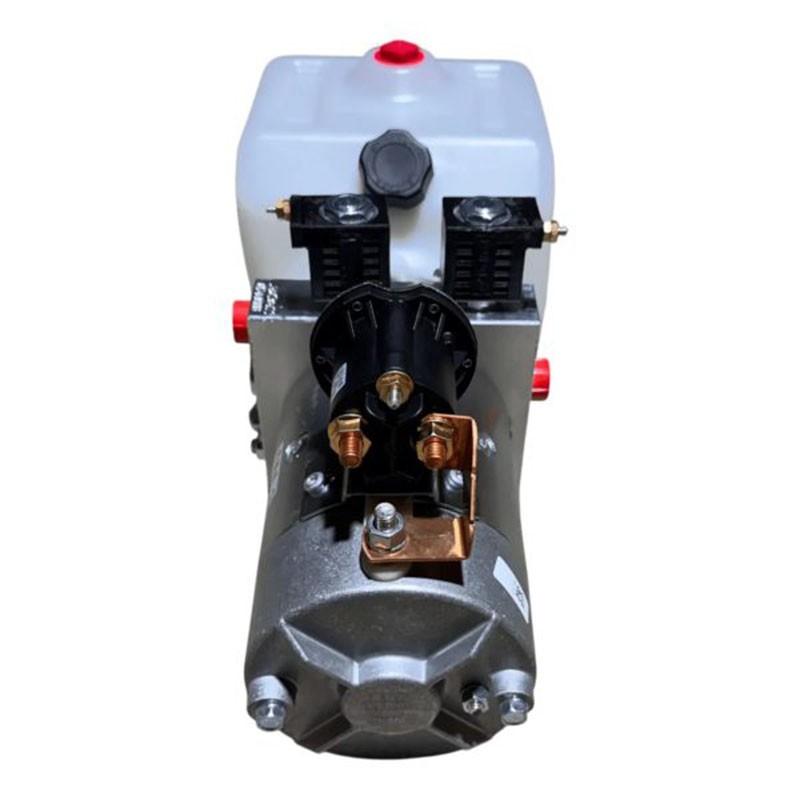

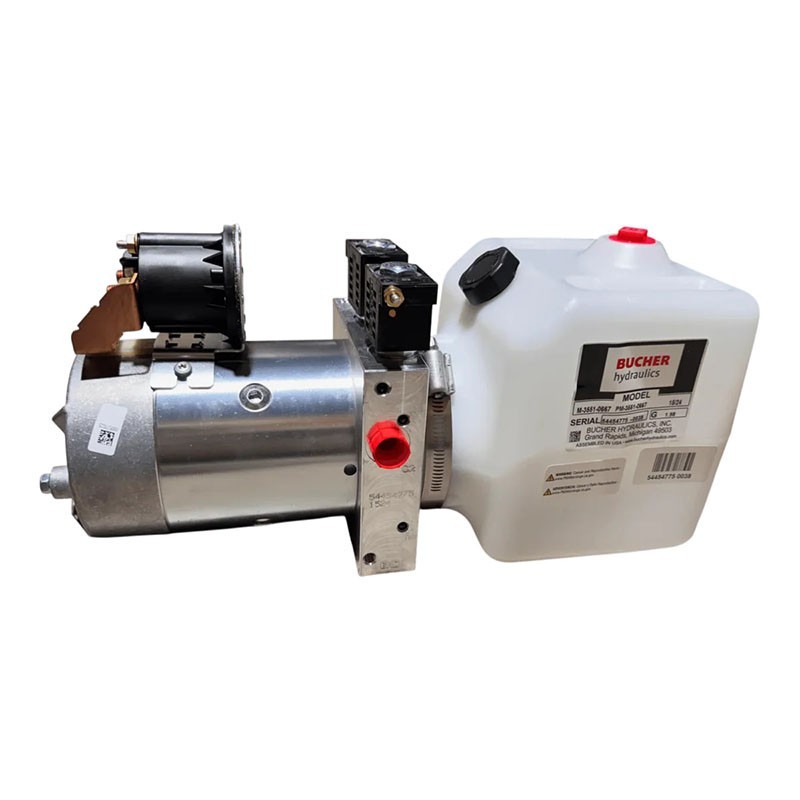

Bucher PM-3551-0667 12V double-acting hydraulic power unit with Power Up / Power Down operation, 1.5-gallon poly reservoir, 2500 PSI operating pressure, and 1.5 GPM flow rate. Ideal for dump trailers, liftgates, agricultural equipment, and mobile hydraulic applications.

Inquiry

Product Detail

Description

Maximize the performance of your hydraulic systems with the Bucher Double-Acting Hydraulic Power Unit, model PM-3551-0667, from Bucher Hydraulics, Inc. Designed for Power Up and Power Down operation, this compact and reliable hydraulic power unit delivers efficient performance for mobile and industrial applications. Featuring a 1.5-gallon high-density polyethylene reservoir, this double-acting pump provides steady power throughout the extension and retraction cycle, making it an ideal choice for demanding tasks.

Key Features

Double-Acting Hydraulic Pump: Provides Power Up and Power Down functionality for precise control of double-acting cylinders
1.5-Gallon Poly Reservoir: Constructed from durable, corrosion-resistant high-density polyethylene with a red filler cap, offering 3 quarts of usable hydraulic fluid capacity
12V DC Motor: Ensures dependable performance in mobile environments, compatible with vehicle-based hydraulic systems
High Operating Pressure: Delivers up to 2500 PSI, providing robust power for heavy-duty hydraulic applications
Optimized Flow Rate: Maximum oil flow of 1.5 GPM ensures efficient fluid delivery
Standard Hose Connections: Equipped with #6 SAE ports for secure and industry-standard fluid connections
Durable Metal Components: Includes metal motor assembly and mounting bracket for enhanced durability and easy installation
Wide Operating Temperature Range: Reliably operates in temperatures from -20°F to 130°F (-30°C to 55°C), suitable for diverse environments
ATF Recommended: Use ATF (Automatic Transmission Fluid) for optimal performance and longevity
Bucher Quality: Manufactured by Bucher Hydraulics, ISO 9001 certified, delivering exceptional reliability and low warranty return rates

Specifications

Specification	Details
Operating Voltage	12V DC
Operating Pressure	2500 PSI
Max Oil Flow	1.5 GPM
Reservoir Capacity	3 Quarts (usable) / 1.5 Gallon total
Reservoir Material	High-Density Polyethylene
Hose Connections	#6 SAE
Recommended Fluid	ATF (Automatic Transmission Fluid)
Operating Temperature Range	-20°F to 130°F (-30°C to 55°C)

Applications

Dump Trailers: Provides reliable lifting capability
Liftgates: Ensures smooth loading and unloading operations
Hay Bale Spears / Agricultural Equipment: Ideal for farming tasks requiring precise hydraulic control
Mobile Hydraulic Systems: Suitable for trucks, trailers, and other vehicle-mounted systems
Industrial Equipment: Powers machinery requiring compact, high-pressure hydraulic power
