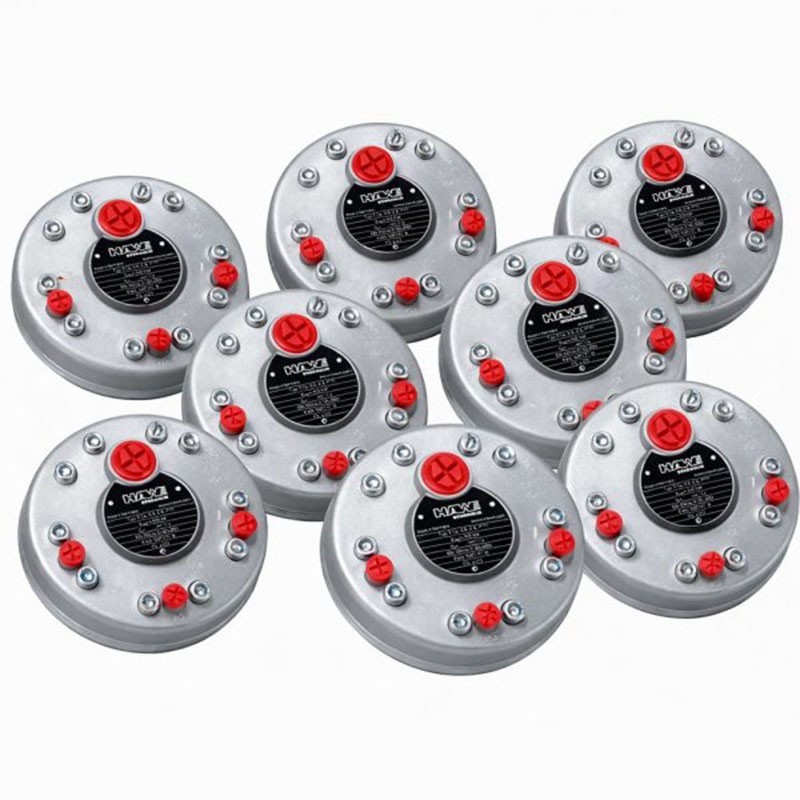

HAWE Radial Piston Pump R3.3-1.7-1.7-1.7-1.7A High Pressure Pump

HAWE R3.3-1.7-1.7-1.7-1.7A radial piston pump with multi-element design for high-pressure hydraulic systems.

Product Detail

HAWE Hydraulik The HAWE R3.3-1.7-1.7-1.7-1.7A is a radial piston pump from the R series, featuring a multi-element design for flexible hydraulic supply. This model combines several pump elements, allowing either separate circuits or combined flow output.

The R series is known for its high-pressure capability (up to approx. 700 bar), excellent volumetric efficiency, and robust construction, making it ideal for demanding industrial hydraulic applications.

Key Features

Radial piston design for high-pressure applications
Multi-element configuration (3.3 + 1.7 × 4)
Supports multi-circuit or combined flow output
High efficiency and low leakage
Compact and reliable construction
Suitable for continuous or intermittent operation

Specifications

Parameter Name	Value
Brand	HAWE
Product Type	Radial Piston Pump
Model	R3.3-1.7-1.7-1.7-1.7A
Design	Radial piston
Displacement	3.3 + 1.7 + 1.7 + 1.7 + 1.7 cc/rev
Elements	5 pump elements
Output	Multi-circuit or combined flow
Max Pressure	Up to approx. 700 bar
Mounting	Flange mounting
Rotation	As per model
Operation	Continuous or intermittent
Medium	Hydraulic oil
