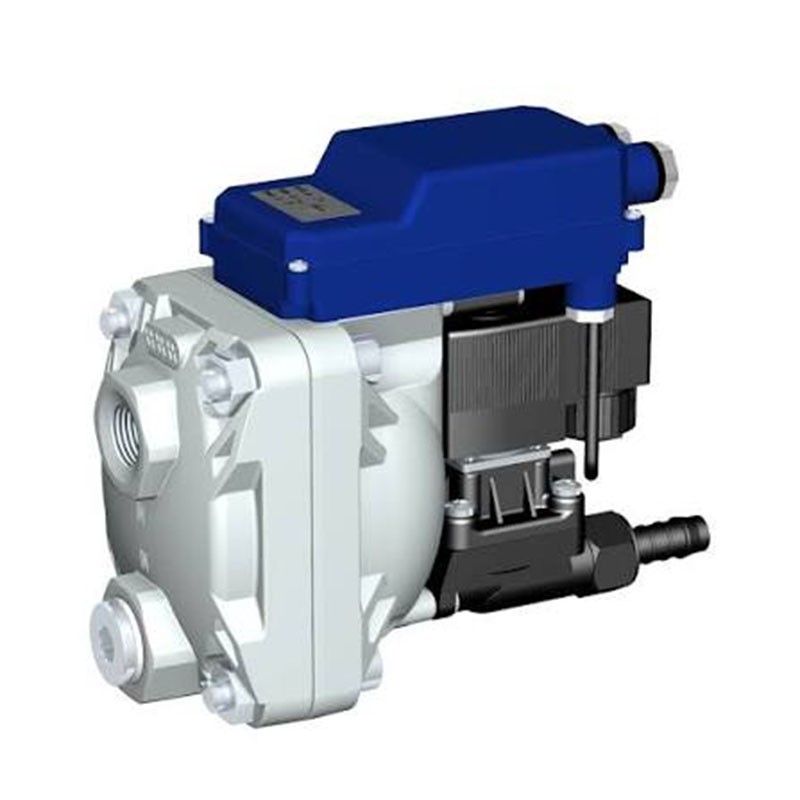

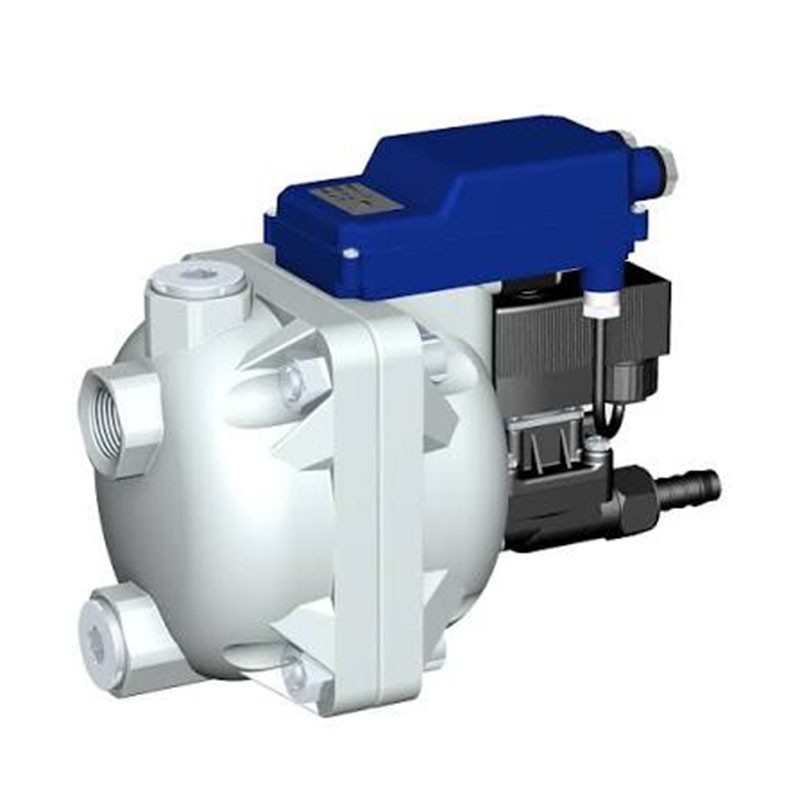

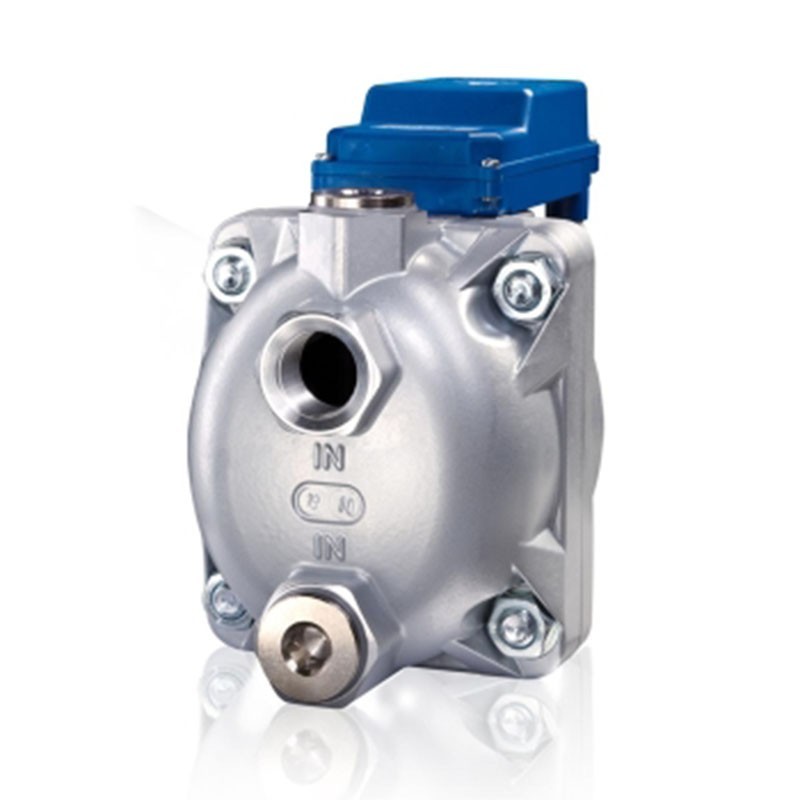

BEKO BEKOMAT 14 / 14 CO / PN25 Zero Air Loss Electronically Level BEKO BEKOMAT 14 / 14 CO / PN25 Zer

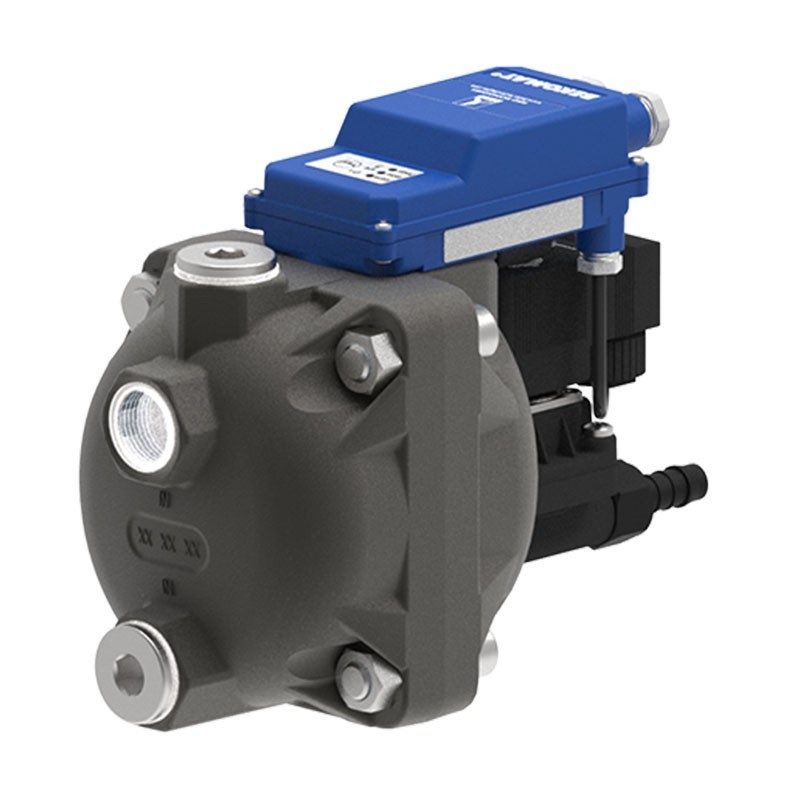

True Zero Air Loss Energy Savings: The capacitive sensor opens and closes the diaphragm valve before any compressed air can escape, dramatically lowering operating costs and CO2 footprints. Mechanical Wear-Free & Anti-Clogging: Employs a non-contact sensing design without mechanical floats that jam or wear out. Large discharge cross-sections prevent blockages from oily sludge or particulate debris. Intelligent Self-Monitoring & Alarm: In case of a blocked discharge pipe or extreme condensate overloading, a red LED flashes, and an integrated volt-free dry alarm contact can trigger remote system alerts while the valve switches to an automated clearing cycle. Versatile SKUs for Diverse Environments: Standard (14): Robust aluminum body for standard oil-contaminated condensate. CO Version (14 CO): Hard-coated, bead-blasted aluminum housing designed to withstand oil-free, aggressive, and highly acidic condensate. PN25 Version: High-pressure construction built for systems runn
Product Detail
The BEKOMAT® 14 series represents the global gold standard for commercial-grade, zero-air-loss electronically level-controlled condensate drains. Utilizing integrated capacitive level sensors, it intelligently tracks condensate volume and evacuates fluid only when full—completely eliminating the costly compressed air leakage associated with traditional timed solenoid valves. Widely utilized on heavy-duty compressors, aftercoolers, air receivers, refrigeration dryers, and multi-stage filters, it is the premier component for maximizing energy efficiency in pneumatic networks.
Technical Specifications Table
| Specification Details | BEKOMAT 14 (Standard) | BEKOMAT 14 CO (Hard-Coated) | BEKOMAT 14 CO PN 25 (High Pressure) |
|---|---|---|---|
| Max. Compressor Capacity | 150 m³/min (5300 scfm) | 130 m³/min (4600 scfm) | 90 m³/min (3180 scfm) |
| Max. Dryer Capacity | 300 m³/min (10600 scfm) | 260 m³/min (9200 scfm) | 180 m³/min (6360 scfm) |
| Max. Filter Capacity | 1500 m³/min (53000 scfm) | 1300 m³/min (46000 scfm) | 900 m³/min (31800 scfm) |
| Operating Pressure Range | 0.8 … 16 bar (g) / 12-232 psig | 0.8 … 16 bar (g) / 12-232 psig | 1.2 … 25 bar (g) / 18-362 psig |
| Housing Material | Premium Die-cast Aluminum | Aluminum, Hard-coated & Sandblasted | Aluminum, Hard-coated & Sandblasted |
| Valve Diaphragm | FKM (Viton® Standard) | FKM (Viton® Standard) | FKM (Viton® Standard) |
| Condensate Inlet Connection | 3 x G ¾ (Inside / Female) | 3 x G ¾ (Inside / Female) | 3 x G ¾ (Inside / Female) |
| Condensate Discharge Outlet | 1 x G ½ (Male) with hose connector | 1 x G ⅜ (Inside / Female) | 1 x G ⅜ (Inside / Female) |
| Operating Ambient Temp. | +1 °C … +60 °C (34 °F … 140 °F) | +1 °C … +60 °C (34 °F … 140 °F) | +1 °C … +60 °C (34 °F … 140 °F) |
| Standard Options Voltage | 230VAC / 115VAC / 24VDC (±10%) | 230VAC / 115VAC / 24VDC (±10%) | 230VAC / 115VAC / 24VDC (±10%) |
| Enclosure Rating / Power | IP 65 / P < 8.0 W (VA) | IP 65 / P < 8.0 W (VA) | IP 65 / P < 8.0 W (VA) |
