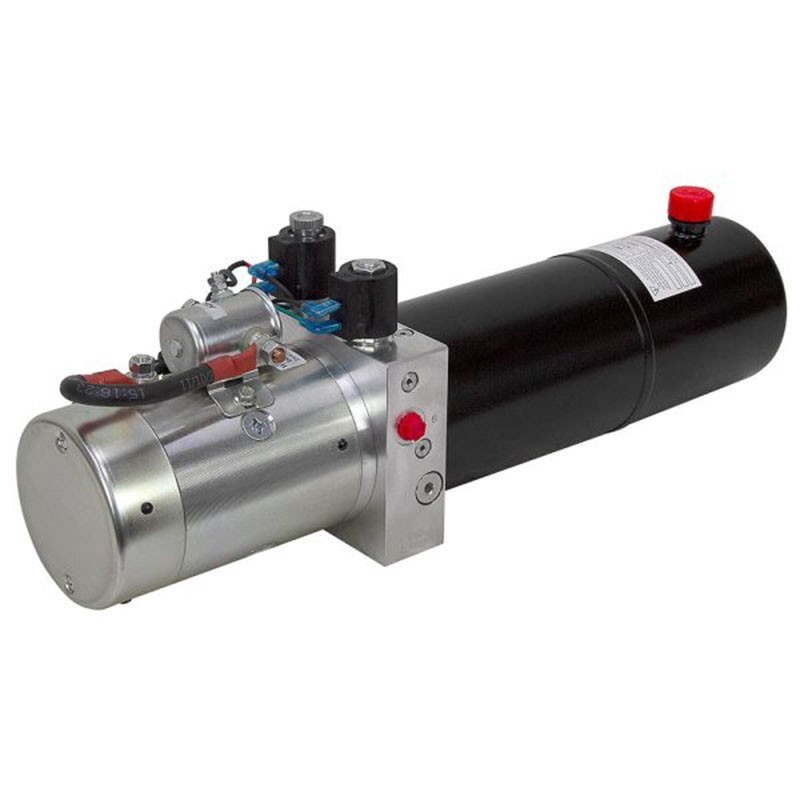

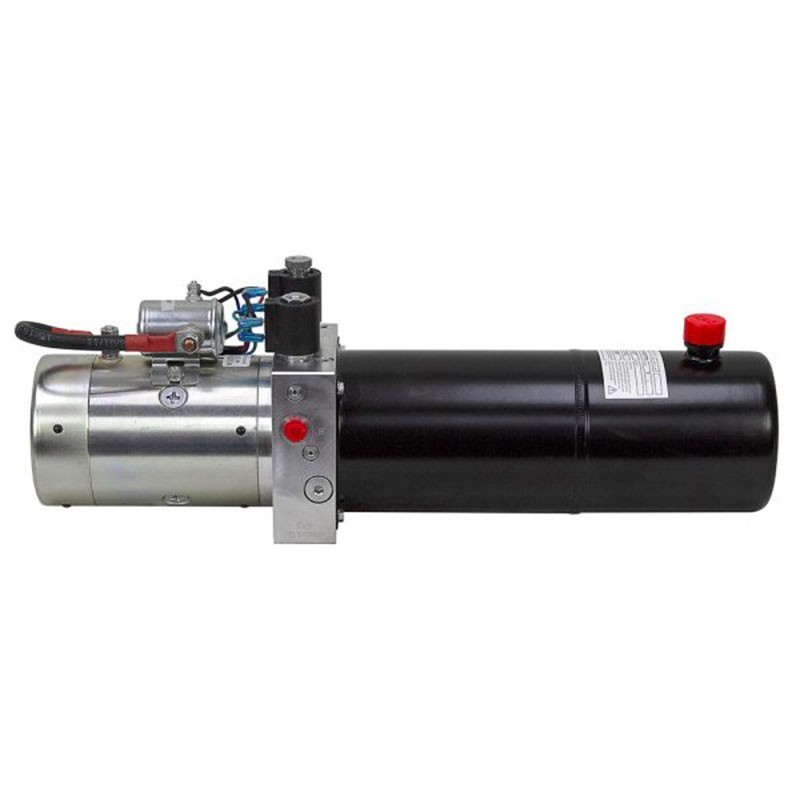

Bucher 12V DC Double-Acting Hydraulic Power Unit – 1.4 GPM / 3000 PSI

Bucher 12V DC double-acting hydraulic power unit – 1.4 GPM flow, 3000 PSI max pressure, 2 HP motor, steel reservoir (2.5 quarts usable), pendant control, dual adjustable relief valves. Ideal for dump trucks, liftgates, stackers, and mobile hydraulic applications.

Inquiry

Product Detail

Description

The Bucher 12V DC double-acting hydraulic power unit is designed to operate double-acting hydraulic cylinders. It is suitable for a wide range of mobile and industrial applications, including dump trailers, roll-off trucks, forklift stackers, liftgates, pallet trucks, aerial work platforms, auxiliary power, and more. The unit features a 12V DC solenoid valve and check valve for precise directional control of the double-acting cylinder. Built-in check valve, adjustable main relief valve, and a work port relief valve on the retract port provide reliable pressure protection and control.

Key Features

Double-Acting Control: 12V DC solenoid valve controls cylinder extend/retract direction
High-Performance Motor: 2 HP, 12V DC, 260 Amps, intermittent duty
High Flow & Pressure: 1.4 GPM flow @ 1500 PSI, maximum pressure 3000 PSI
Dual Adjustable Relief Valves: Main relief set at 3000 PSI (adjustable), retract port work relief set at 1500 PSI (adjustable)
Pendant Control: Includes handheld pendant switch for convenient operation
Standard Ports: SAE 6 ports for easy connection
Horizontal Mounting: Compact design for horizontal installation
Steel Reservoir: 3.1 quarts total capacity, 2.5 quarts usable, robust and durable
Compact Dimensions: 21-1/2″ × 7-1/8″ × 8-3/4″, shipping weight 43 lbs

Specifications

Specification	Details
Brand	Bucher
Model	YBZ5F21A1A61WUATT1C
Power	2 HP
Voltage	12V DC
Current	260 Amps
Duty Cycle	Intermittent
Flow	1.4 GPM @ 1500 PSI
Maximum Pressure	3000 PSI
Main Relief Valve Setting	3000 PSI (adjustable)
Retract Port Relief Valve Setting	1500 PSI (adjustable)
Control	Pendant switch
Valve Type	Double-acting, 12V DC solenoid
Port Size	SAE 6
Mounting Orientation	Horizontal
Reservoir Total Capacity	3.1 quarts (2.93 L)
Reservoir Usable Capacity	2.5 quarts (2.36 L)
Reservoir Material	Steel
Dimensions (L×W×H)	21.5″ × 7.125″ × 8.75″ (approx. 546 × 181 × 222 mm)
Shipping Weight	43 lbs (approx. 19.5 kg)
