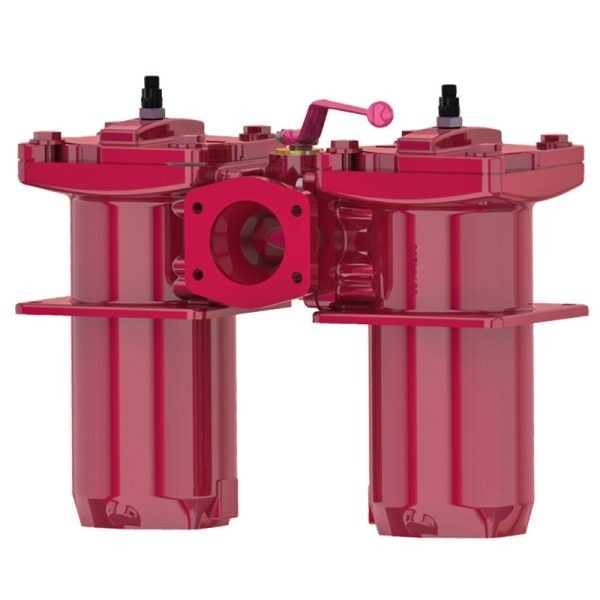

HYDAC In-Tank/Inline Duplex Industrial Filter (RFD Series 360 PSI)
Advantages of HYDAC RFD Series Wide flow range (60 – 1300 L/min) for versatile applications High pressure resistance (25 bar) for return line systems Multiple connection standards (SAE / NPT / BSP) Optional seal materials (NBR / FKM) Multiple filtration ratings (3µm / 5µm / 10µm) Reliable and cost-effective design
Product Detail
HYDAC In-Tank/Inline Duplex Industrial Filter (RFD Series 360 PSI)
Model Differences Overview
| Category | Description | Features |
|---|---|---|
| RFD60–240 | Low flow | 60–240 L/min |
| RFD330–660 | Medium flow | 330–660 L/min |
| RFD950–1300 | High flow | 950–1300 L/min |
| ON Series | With filter element | Filtration available |
| XX Models | Housing only | Custom configuration |
| NBR | Standard seal | General use |
| FKM | Premium seal | High temperature / chemicals |
Technical Specifications
| Parameter | Value |
|---|---|
| Flow Range | 60 – 1300 L/min |
| Max Pressure | 25 bar / 360 psi |
| Filtration Rating | 3 / 5 / 10 µm |
| Seal Material | NBR / FKM |
| Connection Type | SAE / NPT / BSP |
| Installation | Return line |
Applications
Construction machinery
Industrial hydraulic systems
Injection molding machines
Agricultural equipment
Medium hydraulic units
Automation systems
Part Number Reference
| Part Number | Model Code Description | Flow | Operating Pressure (Max) | Filter Rating | Bypass Valve | Seal Material |
|---|---|---|---|---|---|---|
| 303382 | RFD330DALXXA1.1/16V (2″ SAE/2″ NPT) | 87 gpm / 330 L/min | 25 bar / 360 psi | N/A | B3 | FKM |
| 308601 | RFD330DAGXXA1.0/0 (G 2″) | 87 gpm / 330 L/min | 25 bar / 360 psi | N/A | B3 | NBR |
| 311699 | RFD950DAOXXA1.1/16 (4″ SAE/3 1/2″ SAE) | 251 gpm / 950 L/min | 25 bar / 360 psi | N/A | B3 | NBR |
| 311718 | RFD950DAOXXA1.1 (SAE DN102/SAE DN89) | 251 gpm / 950 L/min | 25 bar / 360 psi | N/A | B3 | NBR |
| 311802 | RFD330DALXXA1.1/16 (2″ SAE/2″ NPT) | 87 gpm / 330 L/min | 25 bar / 360 psi | N/A | B3 | NBR |
| 312006 | RFD660DANXXA1.1 (SAE DN76/G 3″) | 174 gpm / 660 L/min | 25 bar / 360 psi | N/A | B3 | NBR |
| 312288 | RFD1300DAPXXA1.1 (SAE DN102) | 343 gpm / 1300 L/min | 25 bar / 360 psi | N/A | B3 | NBR |
| 312431 | RFD330DALXXA1.0 (SAE DN51/G 2″) | 87 gpm / 330 L/min | 25 bar / 360 psi | N/A | B3 | NBR |
| 314402 | RFD660DANXXA1.1/16 (3″ SAE/3″ NPT) | 174 gpm / 660 L/min | 25 bar / 360 psi | N/A | B3 | NBR |
| 317646 | RFD660DANXXA1.1/16V (3″ SAE/3″ NPT) | 174 gpm / 660 L/min | 25 bar / 360 psi | N/A | B3 | FKM |
| 318593 | RFD950DAOXXA1.1/16V (4″ SAE/3 1/2″ SAE) | 251 gpm / 950 L/min | 25 bar / 360 psi | N/A | B3 | FKM |
| 1251681 | RFD ON 950DAP3A1.1 | 251 gpm / 950 L/min | 25 bar / 360 psi | 3 µm | B3 | NBR |
| 1251794 | RFD1300DAPXXA1.1/V | 343 gpm / 1300 L/min | 25 bar / 360 psi | N/A | B3 | FKM |
| 1253414 | RFD330DALXXA1.0/-V | 87 gpm / 330 L/min | 25 bar / 360 psi | N/A | B3 | FKM |
| 1261891 | RFD ON 660DAN10D1.1/-V-L24 | 174 gpm / 660 L/min | 25 bar / 360 psi | 10 µm | B3 | FKM |
| 1263960 | RFD950DAOXXA1.1/V | 251 gpm / 950 L/min | 25 bar / 360 psi | N/A | B3 | FKM |
| 1271112 | RFD60DACXXA1.0 (G 3/4″) | 15 gpm / 60 L/min |
